ATH Heinl W102 Heavy-Duty Truck & Bus Wheel Balancers

In stock
SKU
ATH Heinl W102
As low as £2,195.00 £2,634.00
DOWNLOAD BROCHURE

Finance from £11.51 +VAT per week*

Loading...

Details

ATH Heinl W102 Heavy-Duty Truck & Bus Tyre Balancer


The ATH W102 Wheel Balancer is a rugged, versatile, workshop-grade balancing machine engineered for garages, tyre centres, MOT bays, commercial fleets — or any business that needs to handle everything from passenger-car tyres to large van and light-truck wheels. Designed by ATH-Heinl, a respected European manufacturer of tyre-service equipment, the W102 combines strength, precision and ease-of-use for reliable, long-term performance.
  • Manual input of distance, rim diameter and rim width
  • Operation via ergonomically arranged front control panel, large shelf with numerous compartments
  • Digital position display of the weights via LED monitor
  • Manual drive with hand brake and five balancing programs (static / dynamic / ALU programs in truck or car mode)
  • No additional wheel lift required — the complete balancing unit with the clamped wheel can be raised
  • Ideally suited for truck, bus, van and car wheels

Technical Data


Center hole diameter rim 45 – 225 mm 270 – 281 mm
Measuring tolerance car | truck ± 10 g | ± 50 g
Shaft diameter 40 mm
Rim width 4 – 15"
Rim diameter 12 – 24"
Max. wheel diameter 1.200 mm
Wheel weight max. 200 kg
Power supply voltage 230V / C16A
Weight net | gross 185 kg | 221 kg

Why Choose This Product?


"Modern tyre servicing demands flexibility, reliability and capacity — not just for standard cars, but also across vans, light trucks and mixed fleets. The ATH W102 offers a comprehensive solution:

  • Handles everything from small car wheels to large van or light-truck rims
  • Multiple balancing modes ensure correct treatment for alloy, steel, commercial or mixed wheel types
  • No additional wheel lift needed — simplifies workflow, reduces setup time and increases throughput
  • Durable industrial build quality suitable for frequent, heavy use
  • Ideal for mixed-vehicle fleets, tyre centres, and busy workshops servicing cars, vans, and light-commercial vehiclesv If you want a heavy-duty, reliable wheel balancer that covers a wide variety of wheel types and workloads — the ATH W102 Wheel Balancer delivers professional-grade performance, accuracy, and long-term durability."

    • ⭐⭐⭐⭐⭐

    We work on everything from small hatchbacks to long-wheelbase vans, and the ATH W102 handles all of them without any issues. The wheel capacity is excellent, the machine feels very solid, and the balancing results are consistently accurate. Definitely a great investment for any garage with a variety of vehicles coming through the door.

    ⭐⭐⭐⭐⭐

    Our workshop takes in a lot of commercial vans and the W102 has made balancing those bigger wheels so much easier. Not needing a separate wheel lift is a big bonus. The machine is straightforward to use once you’ve set it up, and it’s clearly built to last. Only wish the display was slightly larger — but performance-wise it’s spot on.

    ⭐⭐⭐⭐⭐

    The accuracy and stability of this balancer are fantastic. It copes with heavy wheels better than our previous unit, and the different balancing modes help when switching between alloy and steel rims. It’s quick, simple to operate and strong enough for daily heavy use. Would absolutely buy again.


    Products You May Also Consider


    ATH W142 Truck & Car Wheel Balancer – Heavy-Duty 3-in-1 Balancing Machine for Cars, Vans & Light TrucksATH W142 Truck & Car Wheel Balancer – Heavy-Duty 3-in-1 Balancing Machine for Cars, Vans & Light Trucks

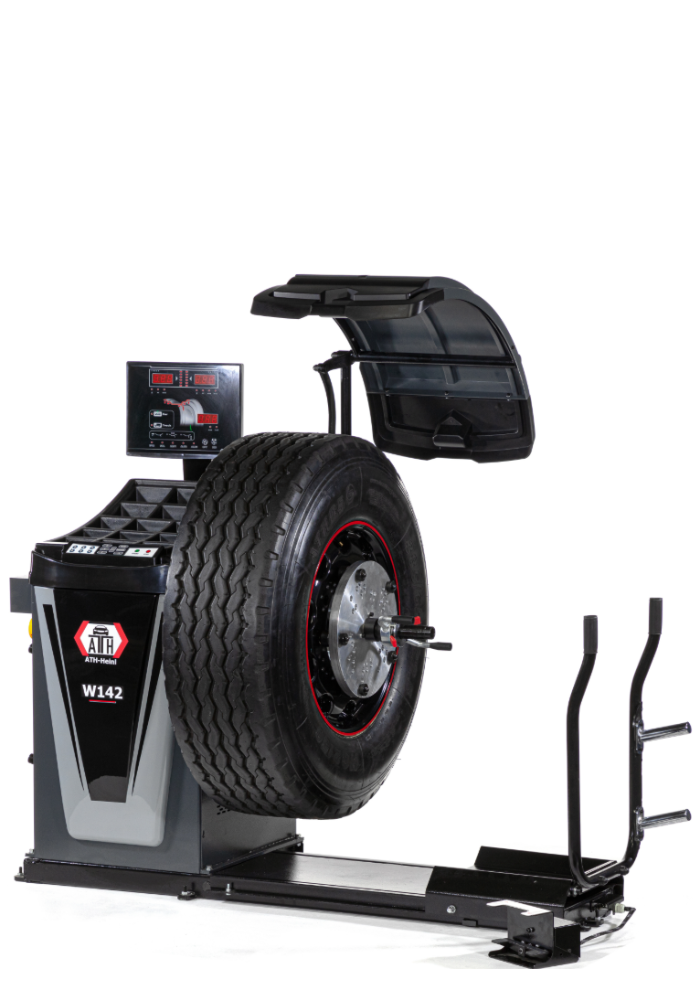

    ATH W142 Truck & Car Wheel Balancer – Heavy-Duty 3-in-1 Balancing Machine for Cars, Vans & Light Trucks
    ATH Heinl W42 LED 3D Fully Automatic BalancerATH Heinl W42 LED 3D Fully Automatic Balancer

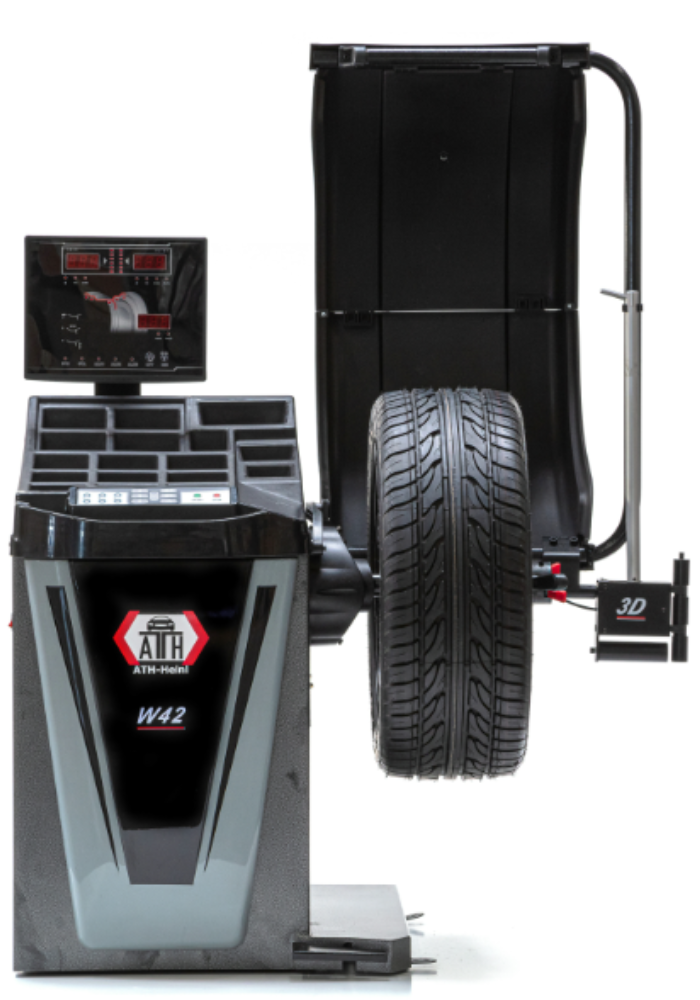

    ATH Heinl W42 LED 3D Fully Automatic Balancer
    ATH W42 LED 2D Wheel Balancer – Fast, Accurate Alloy & Car Wheel Balancing MachineATH W42 LED 2D Wheel Balancer – Fast, Accurate Alloy & Car Wheel Balancing Machine
    ATH W42 LED 2D Wheel Balancer – Fast, Accurate Alloy & Car Wheel Balancing Machine

    FAQ About ATH Heinl W102 Heavy-Duty Truck & Bus Wheel Balancers



    What types of wheels can the ATH W102 balance?
    The W102 is suitable for cars, SUVs, vans, and light-commercial vehicle wheels, with a rim diameter range of 12″ to 24″ and wheel weight capacity of 150–200 kg. It is ideal for mixed-vehicle workshops handling both passenger cars and larger commercial tyres.
    Does the ATH W102 require a separate wheel lift?
    No. The W102 lifts the entire balancing unit with the clamped wheel in place, eliminating the need for a separate wheel-lifting device and making handling heavier wheels easier and safer.
    What balancing programs does the W102 offer?
    The W102 includes static, dynamic, and ALU balancing modes, suitable for:

    • Standard steel wheels
    • Alloy wheels
    • Larger van and light-truck rims

    This ensures accurate balancing across a wide range of vehicle types.
