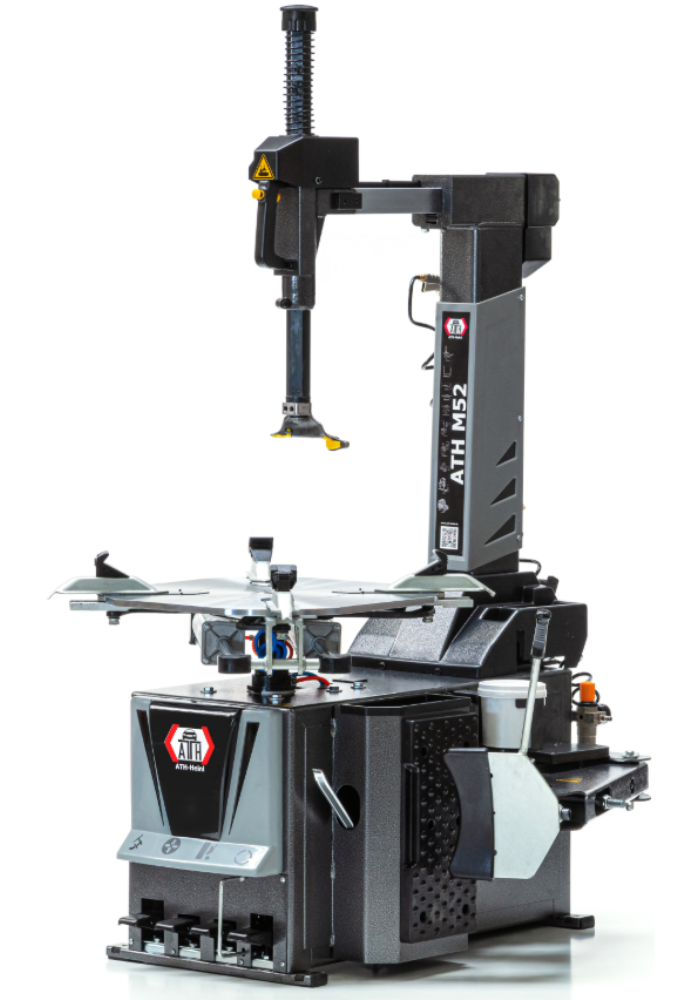

ATH M52 + A34 Assist Arm Tyre Changer – Heavy-Duty Tilt-Back Machine for Run-Flat & UHP Tyres (14"–26")
In stock
SKU
ATH M52 + A34-1
As low as
£3,495.00
£4,194.00
Finance from £18.32 +VAT per week*
The ATH M52 + A34 Tyre Changer is a high-performance, heavy-duty machine engineered for professional workshops, tyre centres, MOT bays and automotive service garages that demand speed, precision and reliability. Designed by ATH-Heinl — a leading European manufacturer known for premium workshop equipment — the M52 + A34 delivers exceptional strength and control for mounting and demounting even the most challenging tyres, including run-flats and ultra-high-performance tyres. With its pneumatic rear-tilt column and the powerful A34 assist arm, this machine gives technicians increased leverage, stability and safety, all while reducing strain and improving workflow efficiency.
- Rear swivel with pneumatic clamping mounting head
- Automatic vertical and horizontal rim removal
- Ergonomically arranged foot pedal controls
- Includes pneumatic-controlled auxiliary assembly arm ATH A34
- Effortless and damage-free assembly of low-profile, UHP, and run-flat tyres
- Self-centering, pre-adjustable 4-jaw system with two double-acting aluminium clamping cylinders
- Outside clamping range up to 22", adjustable by an additional -2"
- Lateral extractor with double-acting aluminium cylinder and anti-jamming system
- Ideally suited for car tyres
- Optional accessories available for motorcycle bikes
- "12 Months Standard Warranty 24 Months Parts Warranty (subject to service contract)"
Technical Data
| Clamping range (inner / outer) | 14 – 26" / 12 – 22" |
| Rim width | 4 – 13" |
| Max. wheel diameter | 1.050 mm |
| Compressed air connection | 10 bar |
| Bead breaking range | 83 – 350 mm |
| Bead breaker force | 2.500 kg |
| Mounting speeds | 6 and 12 U/min |
| Driving power | 0,75 kW |
| Power supply voltage | 3x 400V / C16A |
| Noise level | 70 dB(A) |
Why Choose This Product?
"The M52 + A34 is specifically engineered to tackle the toughest tyres with ease. Whether your workshop is constantly working on run-flats or you handle a broad mix of vehicle types, this machine offers:
Products You May Also Consider
FAQ About ATH M52 + A34 Assist Arm Tyre Changer – Heavy-Duty Tilt-Back Machine for Run-Flat & UHP Tyres (14"–26")
What types of tyres is the M52 + A34 designed for?
The M52 + A34 is ideal for run-flat, ultra-high-performance (UHP), low-profile, and stiff-sidewall tyres.
The A34 assist arm provides additional leverage and control, making difficult tyre changes faster, safer, and more efficient.
What wheel sizes does the ATH M52 + A34 support?
The machine supports:
• 14″–26″ internal clamping
• 12″–24″ external clamping
• Up to 13″ rim width
• Maximum wheel diameter approx. 1,050 mm
This range covers standard car wheels, large SUV wheels, and van tyres.
• 14″–26″ internal clamping
• 12″–24″ external clamping
• Up to 13″ rim width
• Maximum wheel diameter approx. 1,050 mm
This range covers standard car wheels, large SUV wheels, and van tyres.
Does the M52 + A34 require three-phase power?
Yes — the M52 + A34 operates on a 400V three-phase power supply.
Workshops without three-phase will need the appropriate electrical infrastructure.
The machine also requires a stable 10-bar compressed air supply for pneumatic operation.
