ATH W142 Truck & Car Wheel Balancer – Heavy-Duty 3-in-1 Balancing Machine for Cars, Vans & Light Trucks

In stock
SKU
ATH W142 Truck & Car Wheel Balancer
As low as £4,795.00 £5,754.00
DOWNLOAD BROCHURE

Finance from £25.13 +VAT per week*

Loading...

Details

ATH Heinl W142 Heavy-Duty Truck & Bus Tyre Balancer


"The ATH W142 Wheel Balancer is a robust, multi-purpose balancing solution built to meet the demands of both car and commercial-vehicle workshops. Whether you’re running a tyre centre, fleet servicing vans and buses, or doing mixed car and light-truck work, the W142 brings strength, precision and versatility — all wrapped into a heavy-duty, workshop-grade machine. Manufactured by ATH-Heinl — a leading name in European workshop equipment — the W142 is engineered to deliver reliable, accurate wheel balancing across a wide range of wheel types and sizes, making it an essential addition to any professional garage."
  • Automatic distance and rim diameter measurement, manual input of rim width (2D function)
  • Operation via ergonomically arranged front control panel, large shelf with numerous compartments
  • Digital and optical position display of the weights via LED monitor and duo laser (LPS) 12/6 o‘clock
  • Automatic sequence with pneumatic wheel braking and selection between eleven balancing programs (static / dynamic / ALU programs in truck or car mode) and back spoke placement
  • Electric drive with pneumatic wheel lift, easy attachment of the adhesive weights over measuring tool or laser position (6 o‘clock), pneumatic parking brake
  • Wheel protection with automatic start-stop function
  • Including 3/4/5-point Centering flange
  • Ideally suited for truck, bus, van and car wheels
  • "12 Months Standard Warranty 24 Months Parts Warranty (subject to service contract)"

Technical Data


Center hole diameter rim 45 – 290 mm
Measuring tolerance car | truck ± 1 g | ± 10 g
Measuring time car | truck 13 s | 25 s
Measuring speed 180 U/min
Rim width 5 – 20"
Rim diameter car | truck 10 – 24" | 15,5 – 30"
Max. wheel diameter 1.200 mm
Wheel weight max. 160 kg
Driving power 0,55 kW
Power supply voltage 3x 400V / C16A

Why Choose This Product?


"As vehicle fleets diversify — from compact cars to vans, buses, and light trucks — workshop equipment must evolve accordingly. The ATH W142 Wheel Balancer stands out because:

  • It handles vehicles of nearly all kinds: cars, vans, buses, light trucks, even some heavy-duty rims.
  • It provides workshop-grade durability and reliability for intensive daily use.
  • It combines automated measurement, advanced balancing programs, and ergonomic design for efficiency, accuracy, and safety.
  • It saves you from needing multiple machines — one W142 can cover the entire fleet range.
    • For tyre shops, fleet service centres, and commercial garages servicing mixed vehicles — the W142 offers a future-proof, professional, and cost-effective balancing solution."

    ⭐⭐⭐⭐⭐

    We upgraded to the ATH W24 LED 2D and the difference in balancing speed is huge. The automatic data entry saves a lot of time and the results are consistently accurate. Even our less experienced technicians find it straightforward thanks to the clear LED display. Really impressed with the build quality too.

    ⭐⭐⭐⭐⭐

    We upgraded to the W142 because our old balancer couldn’t manage van and light-truck wheels properly. This one has no issues at all. The LED and laser positioning make weight placement simple, even on larger rims. Only reason for 4 stars is that the machine takes up a bit more floor space than expected — but absolutely worth it for the capability

    ⭐⭐⭐⭐⭐

    The W142 has been running in our tyre shop for several months now and performance has been flawless. The automatic measurement saves time and the truck modes are very accurate. Our technicians like the simple control layout and the pneumatic brake system. Brilliant machine for high-volume, mixed-vehicle work.


    Products You May Also Consider


    ATH Heinl W102 Heavy-Duty Truck & Bus Wheel BalancersATH Heinl W102 Heavy-Duty Truck & Bus Wheel Balancers

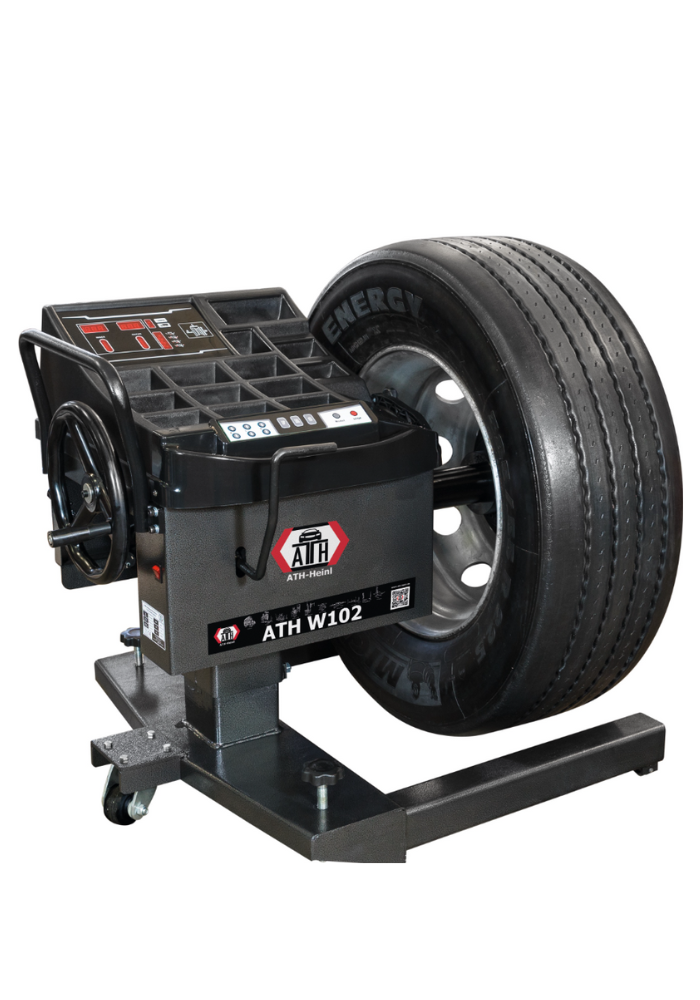

    ATH Heinl W102 Heavy-Duty Truck & Bus Wheel Balancers
    ATH Heinl W42 LED 3D Fully Automatic BalancerATH Heinl W42 LED 3D Fully Automatic Balancer

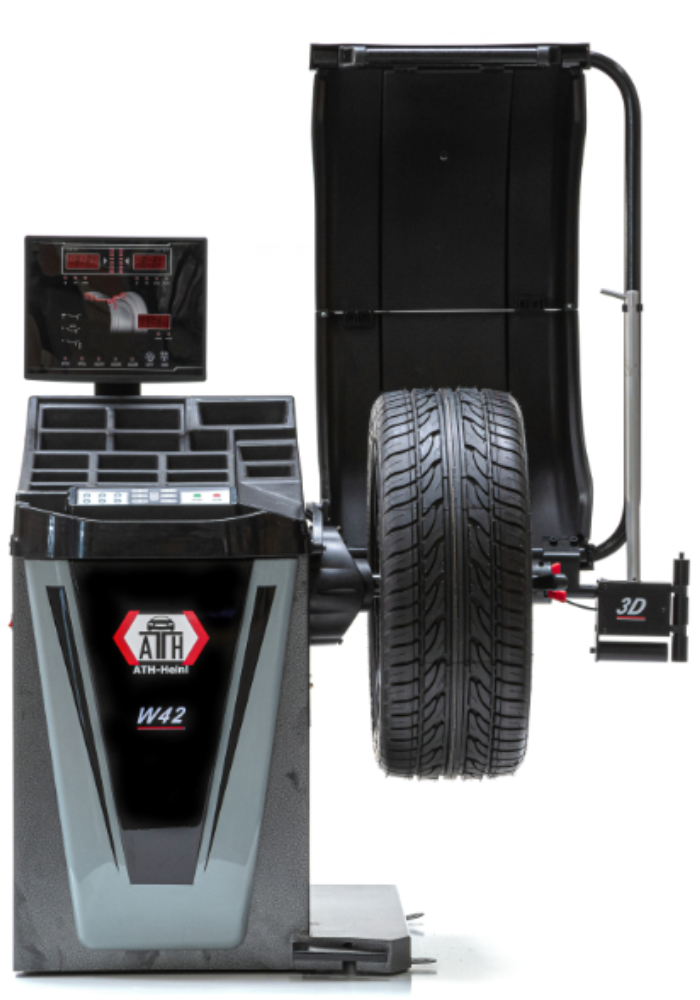

    ATH Heinl W42 LED 3D Fully Automatic Balancer
    ATH Heinl W42 LED 2D Semi Automatic BalancerATH Heinl W42 LED 2D Semi Automatic Balancer

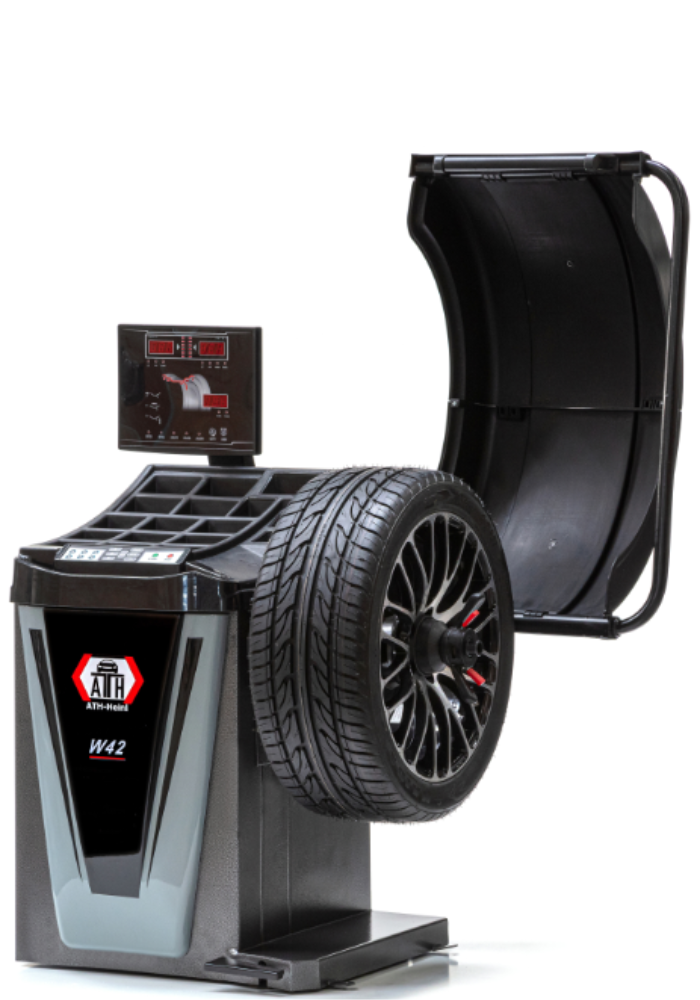

    ATH Heinl W42 LED 2D Semi Automatic Balancer

    FAQ About ATH W142 Truck & Car Wheel Balancer – Heavy-Duty 3-in-1 Balancing Machine for Cars, Vans & Light Trucks



    What types of wheels can the ATH W142 balance?
    The W142 is suitable for cars, SUVs, vans, buses, and light-truck wheels, supporting:

    • 10″–24″ in car mode
    • 15.5″–30″ in truck mode
    • Wheel weights up to 160 kg

    It is ideal for workshops handling both passenger and commercial vehicles.
    Does the W142 include a wheel lift for heavy tyres?
    Yes. The ATH W142 comes with a pneumatic wheel lift, allowing technicians to safely and efficiently load heavier wheels without additional lifting equipment — perfect for van and truck tyres.
    What balancing modes are available?
    The machine includes 11 balancing programs, such as:

    • Static & dynamic modes
    • ALU programs for alloy rims
    • Truck-specific balancing modes
    • Behind-spoke and weight-optimisation functions

    This ensures correct balancing for both light vehicles and commercial wheels.
