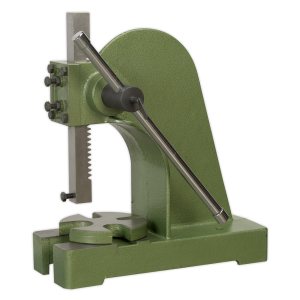

2 Tonne Arbor Press
In stock
SKU
TED-PK2000
£269.95
£323.94
2 Tonne Arbor Press
This is a heavy-duty 2-tonne arbour press designed for more demanding precision assembly and manufacturing tasks that require controlled manual pressure. Built around a massive cast steel frame, this unit provides a substantial 2000kg of downward force, making it suitable for seating larger bearings, bushings, and pins in automotive or industrial components. The rack-and-pinion drive mechanism provides the operator with exceptional tactile feedback, which is critical for sensitive fitting jobs where the blunt force of a hydraulic press could cause damage. The precision-machined steel ram ensures a smooth, vertical stroke every time, while the rotating four-position work table features various slot widths to provide maximum support for pins and shafts of different diameters. With its compact footprint and pre-drilled base, this is easily mounted on any sturdy workbench, providing a powerful, highly accurate mechanical advantage for repetitive workshop operations such as riveting, punching, and broaching.
Features & Benefits
2000kg pressing capacity: Offers twice the force of standard small arbor presses, allowing for more substantial mechanical fitting tasks.
Massive cast steel frame: Provides the rigidity and alignment necessary for precision work, preventing flexing even under the full 2-tonne load.
Machined steel toothed ram: Ensures a smooth and consistent vertical movement, allowing for even pressure application to the workpiece.
Four-position rotating table: Offers multiple slot widths to accommodate various pin sizes and provide clean pass-through for shafts.
Manual rack-and-pinion drive: Gives the technician total control over the speed and pressure applied, essential for precision assembly work.
Technical Specifications
| Capacity: | 2000kg |
| Maximum Distance Table to Piston: | 170mm |
| Throat Depth: | 150mm |
| Nett Weight: | 27.70kg |
Why Choose This Product?
This is the ideal choice for workshops that require more power than a 1-tonne press but need to retain the precision of a manual arbor system. Its primary strength lies in the heavy cast frame, which ensures perfectly square pressing every time. It is a more compact and manageable alternative to a hydraulic press for high-precision, light-to-medium assembly tasks.
FAQs About 2 Tonne Arbor Press
What is the maximum height of a workpiece that will fit under the ram?
This press offers a maximum table-to-piston clearance of around 180mm, making it suitable for a wide variety of automotive and industrial parts.
Can this press be used for punching holes in thick material?
With the correct punches and dies, this is suitable for punching and riveting tasks in fabrication and repair environments.
Does the press include any additional pins?
The press includes the four-position rotating table but is not supplied with separate pins. It is designed to work with standard press pins or the Sealey 8pc Press Pin Set.
