RAV 3.5 t 2-Post Lift KPX35

Q: What makes the asymmetric column design useful?

The 45-degree rotated asymmetric columns increase drive-through width and improve access to vehicle doors and workspace around the car.

In stock

SKU

RAV.KPX35.199010

As low as £4,450.00 £5,340.00

Finance from £23.33 +VAT per week*

2 Post Ramp 3500 kg Asymmetric

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

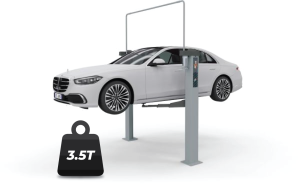

RAV 3.5 t 2-Post Lift KPX35

The Ravaglioli 2-Post Lift KPX35 is a premium, European-engineered solution designed to deliver professional-grade lifting performance, durability, and workshop efficiency in every service bay. Part of the acclaimed Legend Series, this robust lift delivers a 3.5-tonne lifting capacity, making it ideal for passenger cars, light commercial vehicles, and motorhomes. Its electromechanical drive system delivers smooth, reliable movement with minimal routine maintenance, while the asymmetric columns, rotated at 45°, maximise drive-through clearance and leave more room to work around the vehicle. With short 3-stage and long 2-stage telescopic arms fitted with quick-fit rubber pads, positioning vehicles is fast and flexible, reducing turnaround times on every job. Built with premium components tested for over 20,000 cycles and equipped with electronic synchronisation that removes the need for cumbersome realignment cables, the KPX35 streamlines installation and operation. The free-of-obstacle working bay enhances safety and accessibility, while ergonomic push-button controls make lift operation simple for technicians. Whether upgrading your workshop or specifying new equipment, the Ravaglioli KPX35 delivers reliability, performance and long-lasting quality you can trust.

Features & Benefits

3.5 tonne electromechanical lifting system. Safely lifts a wide range of vehicles, from cars to vans and motorhomes.
Asymmetric columns rotated at 45°. Maximises drive-through space and improves access to vehicle doors.
Electronic synchronisation. Eliminates the need for an alignment-cable setup and improves the lift's overall operation.
Short 3-stage & long 2-stage telescopic arms. Offers flexible vehicle positioning for various sizes and wheelbases.
Internal carriages on lubricated sliding guides. Ensures smooth, low-maintenance operation over the long term.
Free of obstacles working bay. Provides maximum space around the vehicle for safer, more efficient servicing.

Technical Specification

Capacity	3500 kg
Max. lifting height:	2020 mm
Lifting time:	42 s
Min. pad height:	100 mm
Max. pad height:	150 mm
Column height:	2920 mm
Drive-through width:	2372-2472 mm
Min. ceiling height:	4150 mm
Arm layout:	Asymmetrical
Min. front arm length:	564 mm
Max. front arm length:	1160 mm
Min. rear arm length:	922 mm
Max. rear arm length:	1460 mm
Driving power:	2x2.6 kW
Width:	3250-3350 mm
Height:	4052 mm"

Why Choose This Product?

Many have chosen the Ravaglioli 2-Post Lift KPX35 for its excellent performance, sturdy European craftsmanship, and thoughtful design that helps improve workflow. Its impressive lifting capacity, user-friendly ergonomics, and durable, high-quality parts make it a reliable choice for daily workshop needs. It’s designed to ensure safety, easy access, and increased productivity every day.

⭐⭐⭐⭐⭐

An outstanding lift! Smooth, strong and reliable. Handles everything from everyday cars to larger vans with ease.

⭐⭐⭐⭐⭐

Great build quality and easy to operate. The asymmetric design gives plenty of room to work.

⭐⭐⭐⭐⭐

Solid performance day in, day out. Very robust and dependable. The adjustable arms make vehicle positioning simple and fast.
